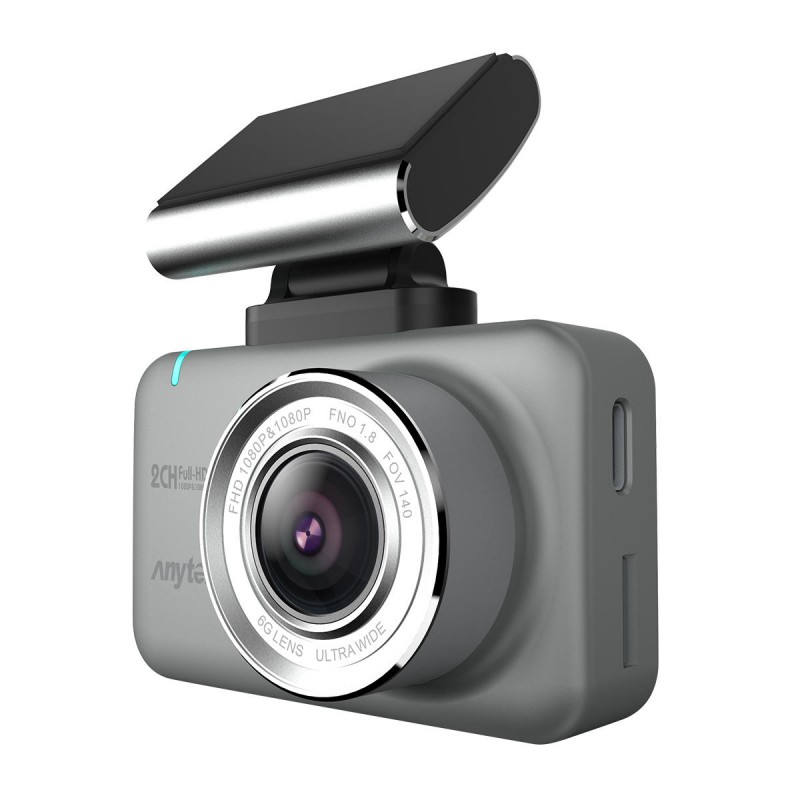

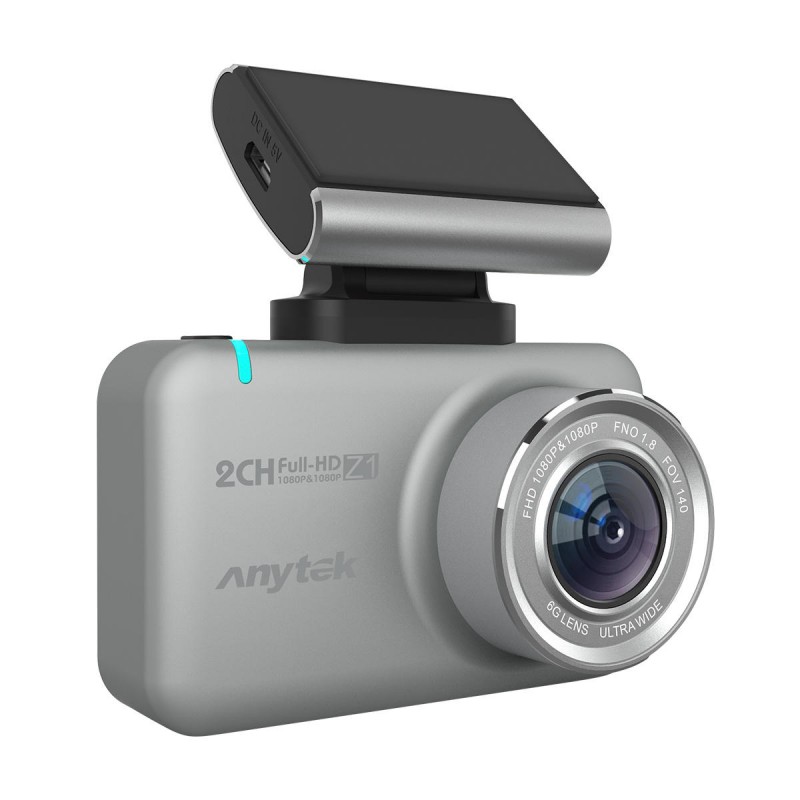

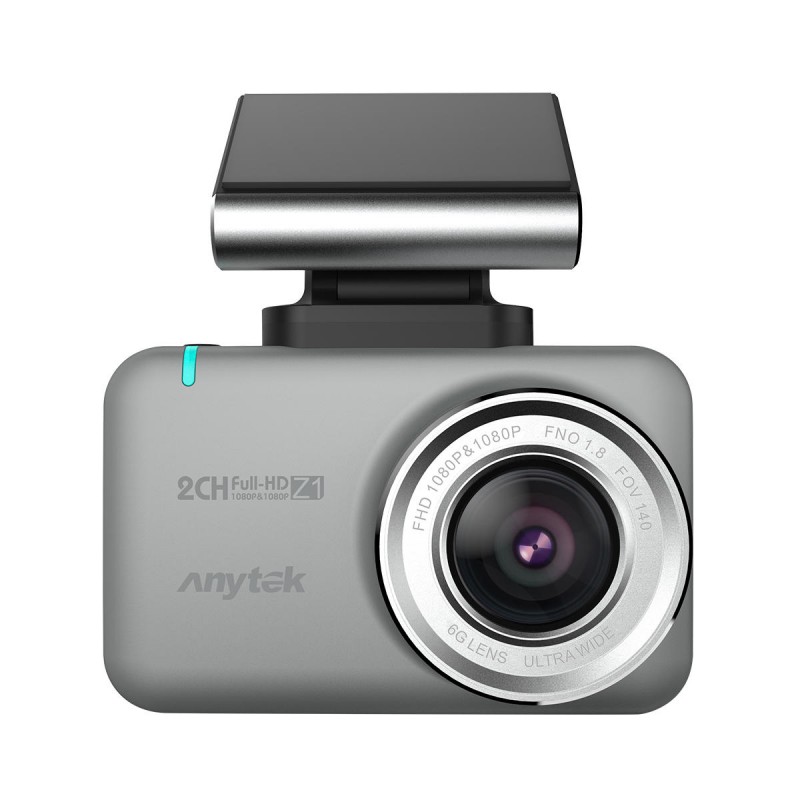

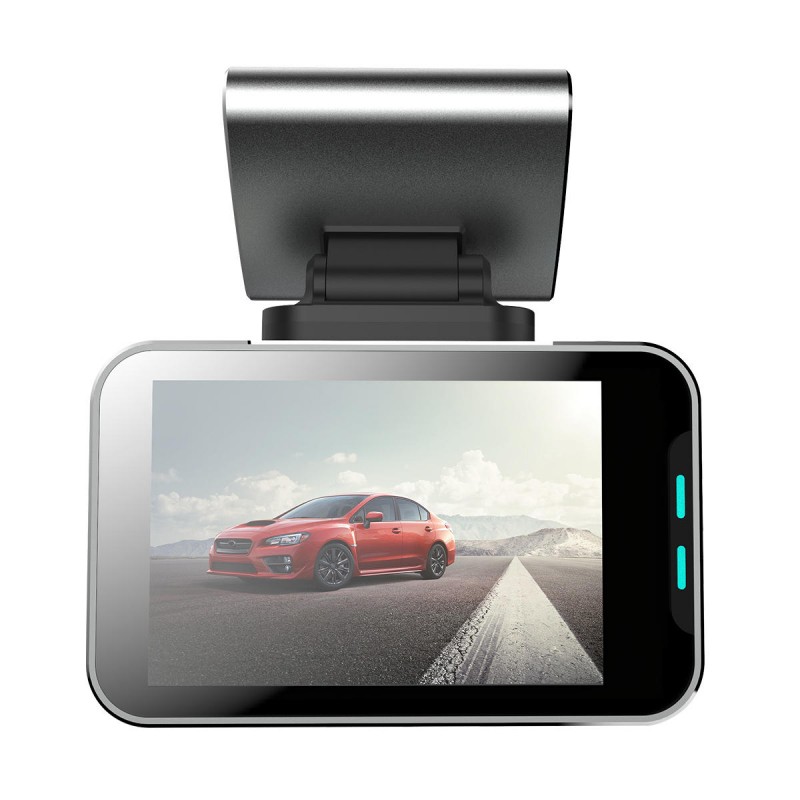

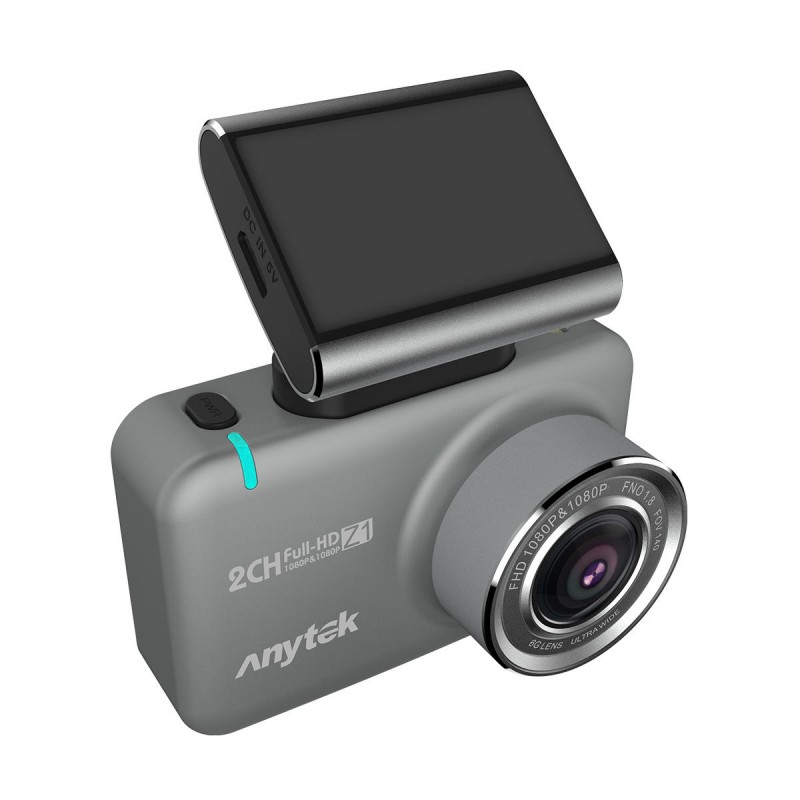

Z1 2.35 Inch 4K 30fps Touch GPS WiFi Star Vision Dual Lens Car DVR
$96.80
- Product Code: ED0003177
- Availability: In Stock
- Ex Tax: $96.80
Feature:

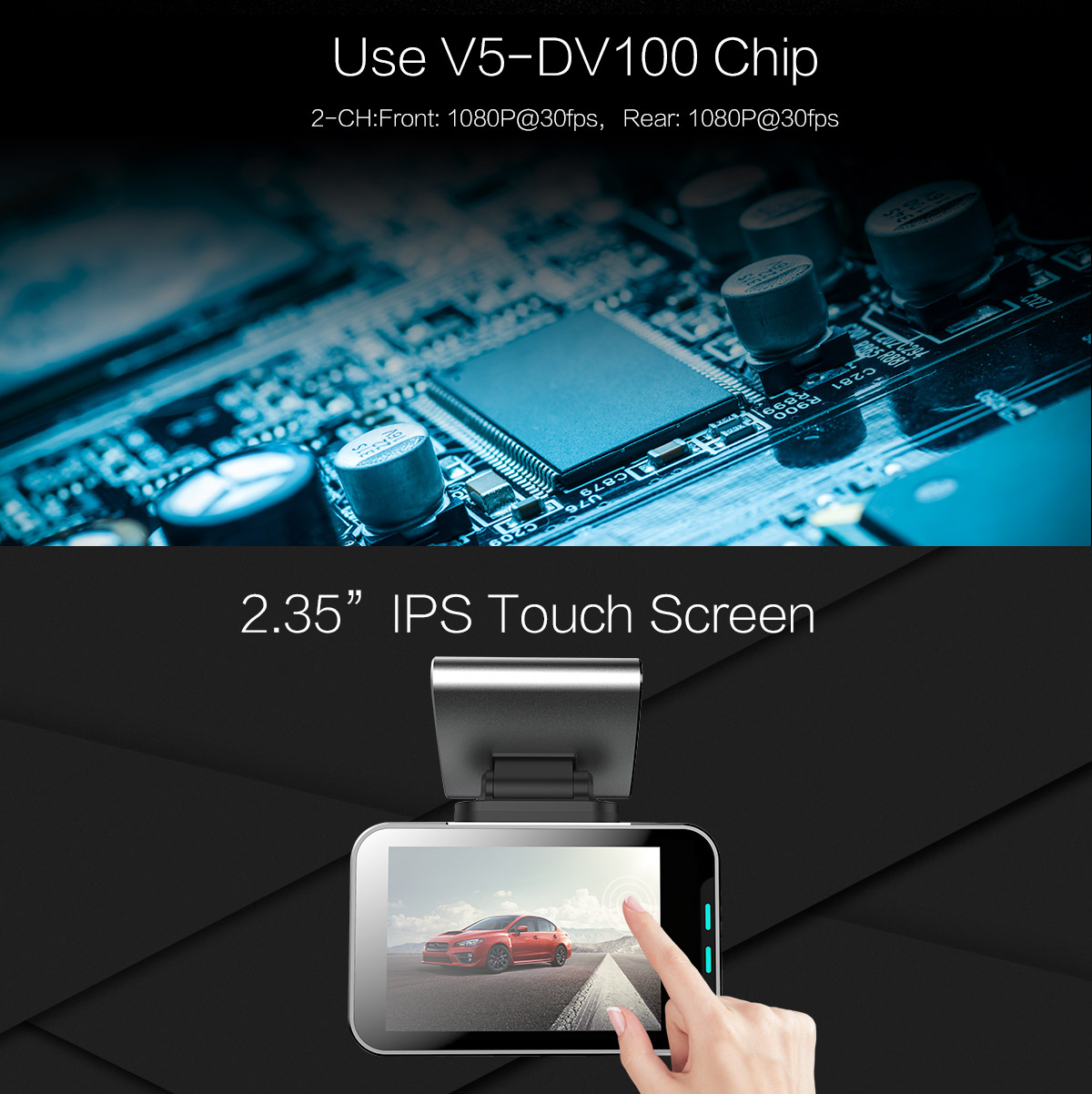

Processor: Allwinner V5-DV100 Cortex [email protected], 32KB I-Cache, 32KB D-Cache/512KB L2 Cache
Main frequency: 1.5GHz
DDR: DDR3 512MB
Memory / Storage: Built-in NOR Flash 32MB
WIFI: XR819
Operating System: Camdroid based on Linux 3.4 kernel
Sensor type: IMX317
Image size: 5.867mm (1/3.06)

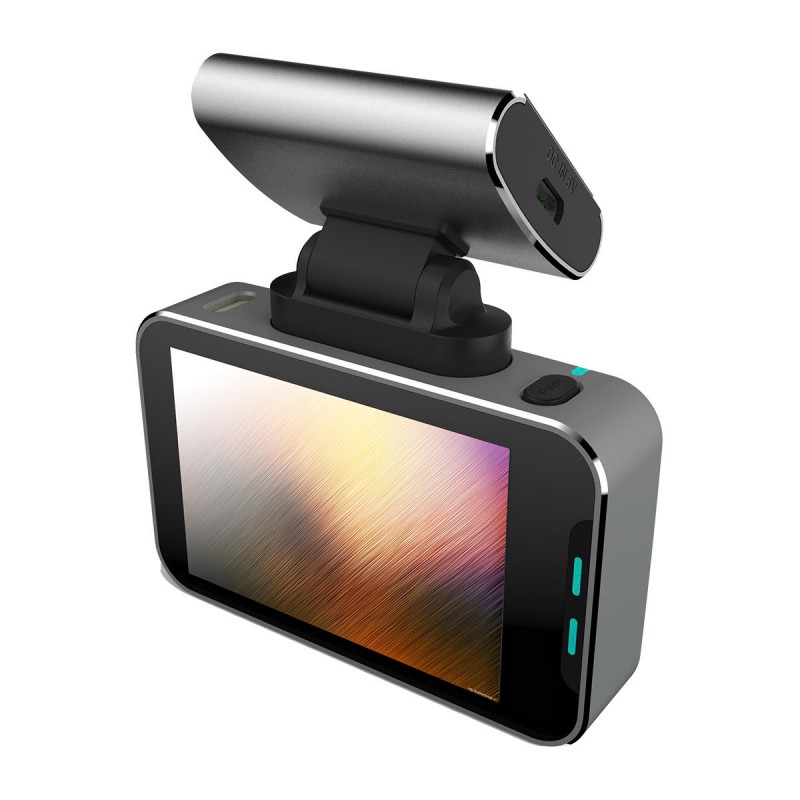

LCD screen: 2.35 inch HD screen
Total number of pixels : 4224(H)x3200(V) approx 13.51Mpixels
Chip size : 6.100mm(H)x4.524mm(V)
Field of view: 150
Relative aperture: F1: 2.0
Depth of field: 24.6CM~∞(AT0.6)
Lens structure: 6G
Video compression standard: H.265
Support image size: Single recording: 4K/4096*4096 30fps Double recording: before and after 1080P/1920*1080 30fps
Frame rate: 30fps (4096*4096) 1080P/1920*1080 30fps before and after
Video quality: 60Mbps
Audio compression standard: ACC
Multi-stream: Support
ONVIF protocol: ONVIF version 2.0
Wireless signal: Support VIFI, 802.11b/g/n wireless protocol
WPS (WiFi Security Protection Settings): Support
Network protocols: TCP/IP, UDP, DNS/DDNS, UPNP, SMTP, DHCP, HTTP and P2P, etc.
Support computer system: For Microsoft XP/Vista/Win7/Win8, IE 7.0/8.0/9.0/10.0
Support for smartphone version: IOS 6.0 and above, Android 2.3 and above
Secure Encryption: User Authentication, Software Optimized Encryption
Audio input: One way built-in pickup
Audio output: Audio amplifier with LPA8302MSF, maximum output 2W
GPS interface: thimble bracket end plug-in GPS

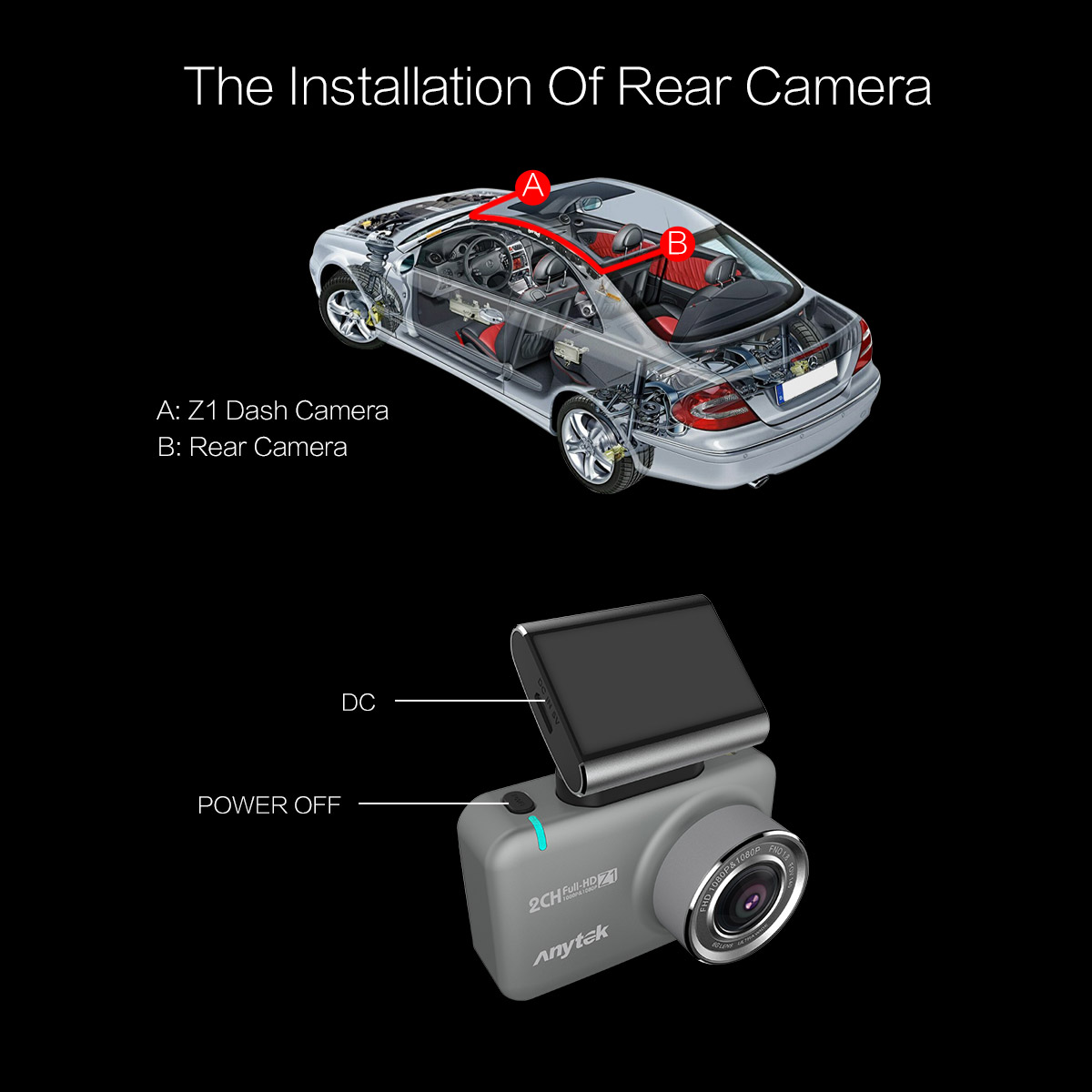

Rear pull interface: TYPE_C USB AHD communication
Communication interface: TYPE_C USB upgrade
Storage media: Built-in TF card slot, support up to 64GB TF card
1 button +TP: Power Key+TP function
Super Capacitor (2.5F): Internally soldered 2.5F super capacitor, save the file after the car is turned off
Working temperature: -10 degrees Celsius ~ 50 degrees Celsius
Power supply: bracket 5 micro 5PIN USB interface power supply
Power consumption: TBD (supports multi-level power saving mode)
Product size: length 68MM* width 43MM* thickness 17.5MM
Package Included:
1 X Anytek Z1 Car DVR
Package Included:
1 X Anytek Z1 Car DVR
