ZF-360 bluetooth 5.0 EDR 2-In-1 Wireless Receiver Transmitter bluetooth Adapter 3.5mm Jack A2DP AVRCP For TV
$11.91
- Product Code: ED0002670
- Availability: In Stock
- Ex Tax: $11.91
ZF-360 bluetooth 5.0 EDR 2-In-1 Wireless Receiver Transmitter bluetooth Adapter 3.5mm Jack A2DP AVRCP For TV PC Computer Mobile phone
Specification:
Model |
ZF-360 |
bluetooth version |
bluetooth V5.0+EDR |
bluetooth profiles |
AVRCP(receiver mode only), A2DP |
Input parameter |
5V 1A |
Charging port |
Micro USB |
Receiver mode play time |
10 hours |
Transmitter mode play time |
7 hours |
Charging time |
1 hour |
Working distance |
10-15m |
Product size |
76*27.5*11.5mm |
Weight |
18g |
1) Transmitter mode
a) Connect the audio interface marked by ‘TX' to the audio source devices (TV, computer, radio, MP3, etc.) with 3.5mm audio cable.
b) Turn the toggle switch to ‘TX' side, long press the ‘Power' button 3 seconds to start up, and the red indicator light will flashes slowly.
c) Turn on the bluetooth receiving device you want to pair and enter the bluetooth pairing mode. The adapter will automatically pair
with it, and the red indicator light will stay on after the connection.
Note: The ‘+', ‘-' and ‘Power' buttons are invalid in this mode.

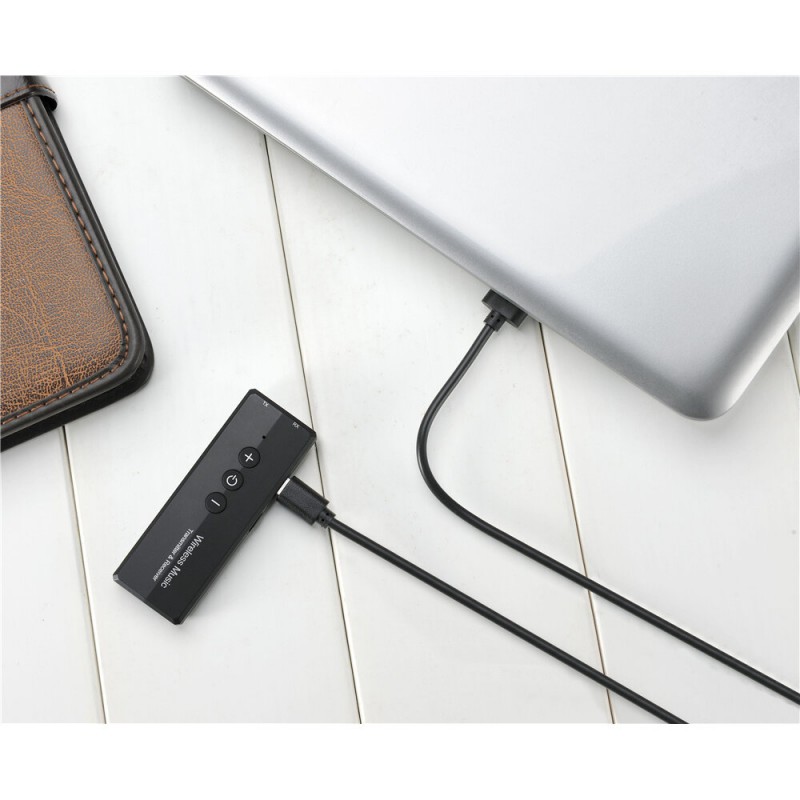

2) PC transmitter mode
a) Connect the USB charging port and the computer USB port with USB data cable.
b) Turn the toggle switch to the ‘TX' side, long press the ‘Power' button 3 seconds to start up, and the red indicator light will flashes slowly.
c) Turn on the bluetooth receiving device you want to pair and enter bluetooth pairing mode. The adapter will automatically pair with it,
and the red indicator light will stay on after the connection.
Note: ‘+' button: next track (press), ‘-' button: previous song(press), ‘Power' button: pause/resume music (press)
3) Receiver mode
a) Connect the audio interface marked by ‘RX' to unbluetooth-enabled speaker or headset with 3.5mm audio cable.
b) Turn the toggle switch to the 'RX' side, long press the ‘Power' button 3 seconds to start up, and you will hear the prompt ‘bluetooth
receiver mode',and the blue indicator light will flashes slowly.
c) Turn on the phone's bluetooth function, search for and connect to the bluetooth device named ‘zf-360', and the blue indicator light
will stay on after the connection.
Note: ‘+' button: next track (press), volume up(press&hold); ‘-' button: previous song (press), volume down(press&hold);
‘Power' button: pause/resume music (press)
Charging:
The red indicator light is always on when charging, and the indicator is off after charging is completed.
Auto Power-off:
When the bluetooth function of the mobile phone is off or the bluetooth is out of the connection range, the receiver willautomatically
enter the pairing state to wait for connection. If it is not connected to any device within 5 minutes, the receiver will automatically shut down.
Note:
1) No driver required when using on the computer.
2) If there is a prompt that ‘device cannot be recognized' when transmitting audio on the computer, it means the USB port is
not properly plugged in.
3) No need to use 3.5mm audio cable when transferring audio from computer with USB data cable.
4) When using USB data cable to transmit audio on the computer, the volume of the computer system cannot beadjusted, only the
volume of playback software (music player, video player) or bluetooth speaker (bluetooth headset) can be adjusted.
5) This device does not support voice calls or voice assistant functions.

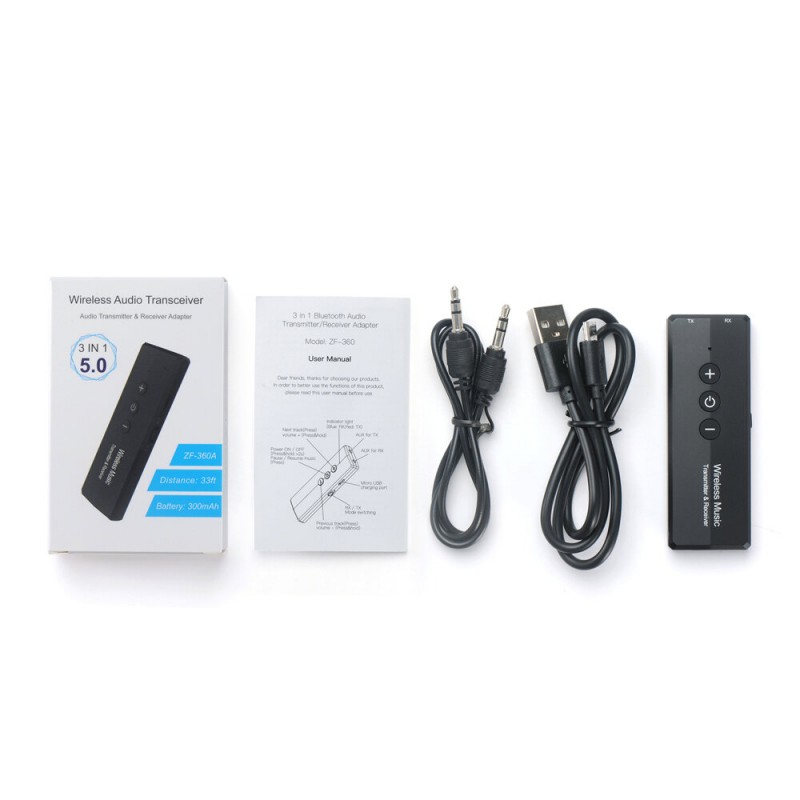

Package Included:
1 X |
bluetooth 5.0 Receiver Transmitter |
1 X |
Audio line |
1 X |
Micro USB Charging Line |
1 X |
Product manual |
