Specification:
Brand: Elecdeer
CPU: AllWinner 4 Core
CPU: AllWinner 4 Core

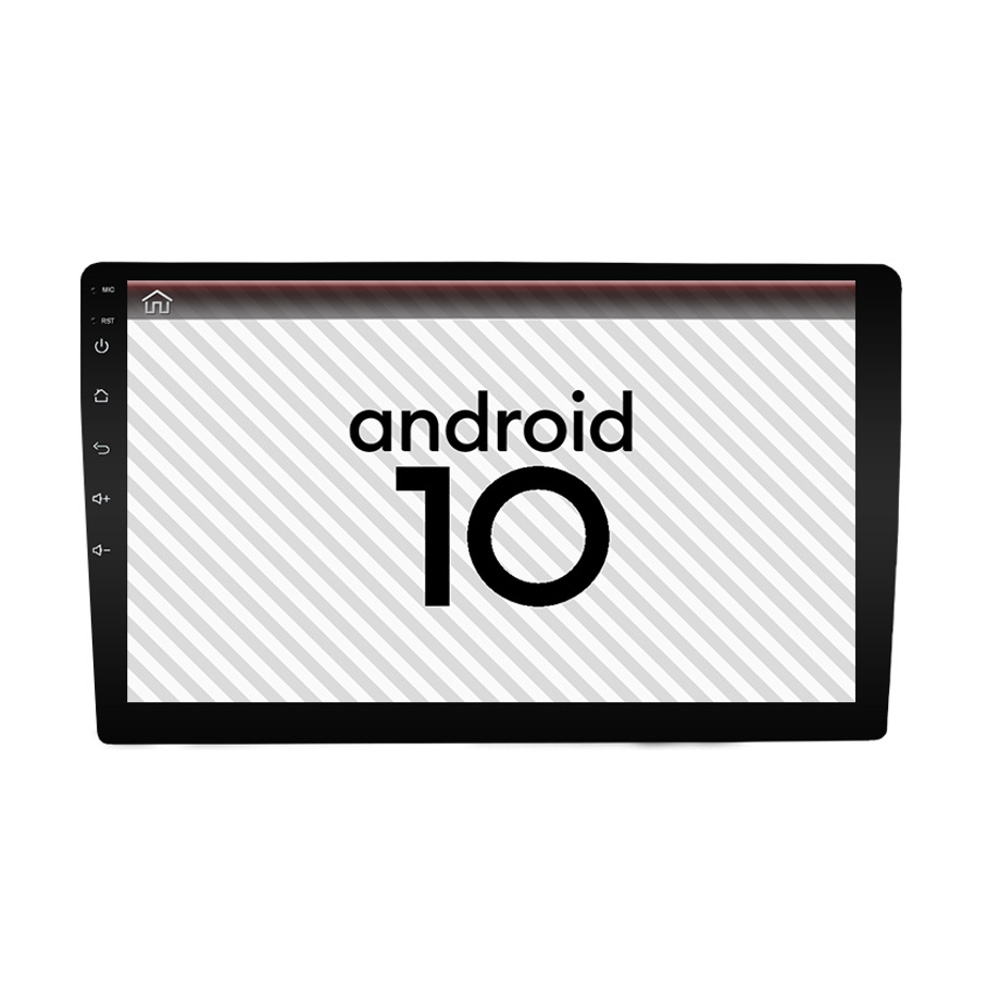

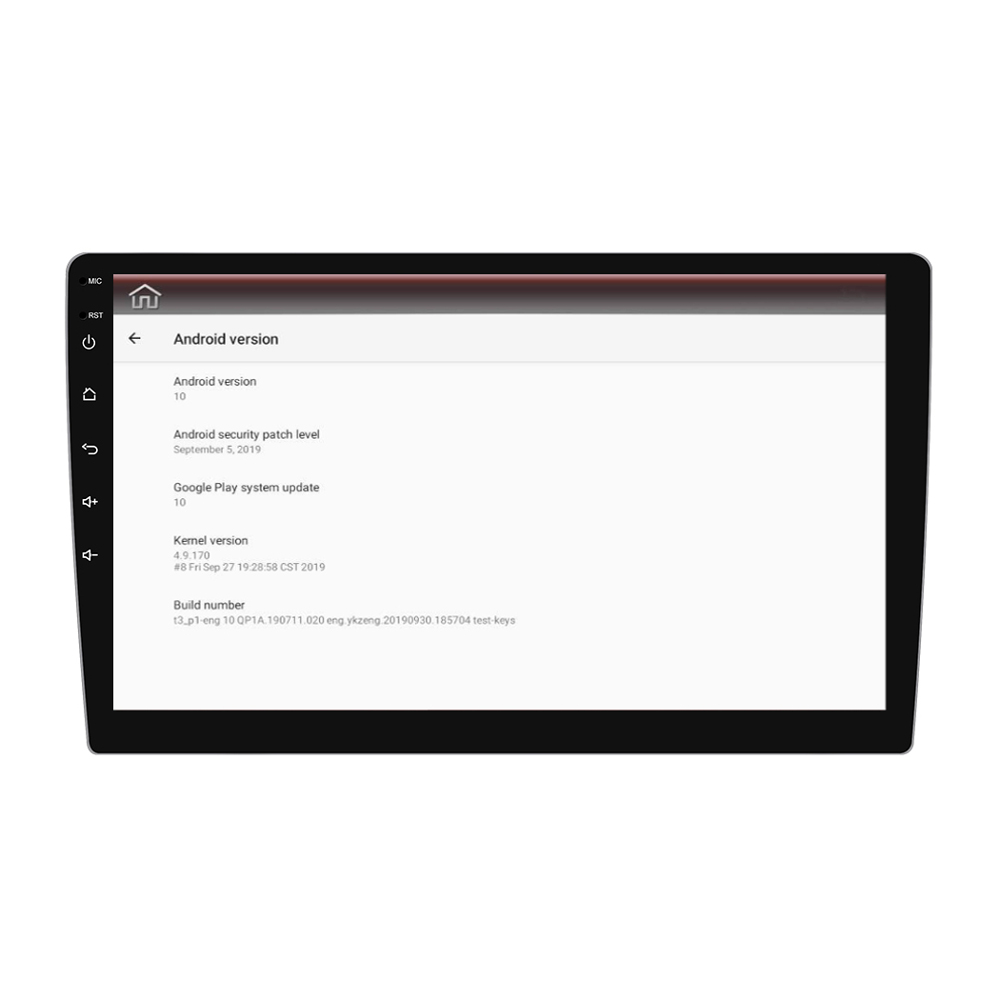

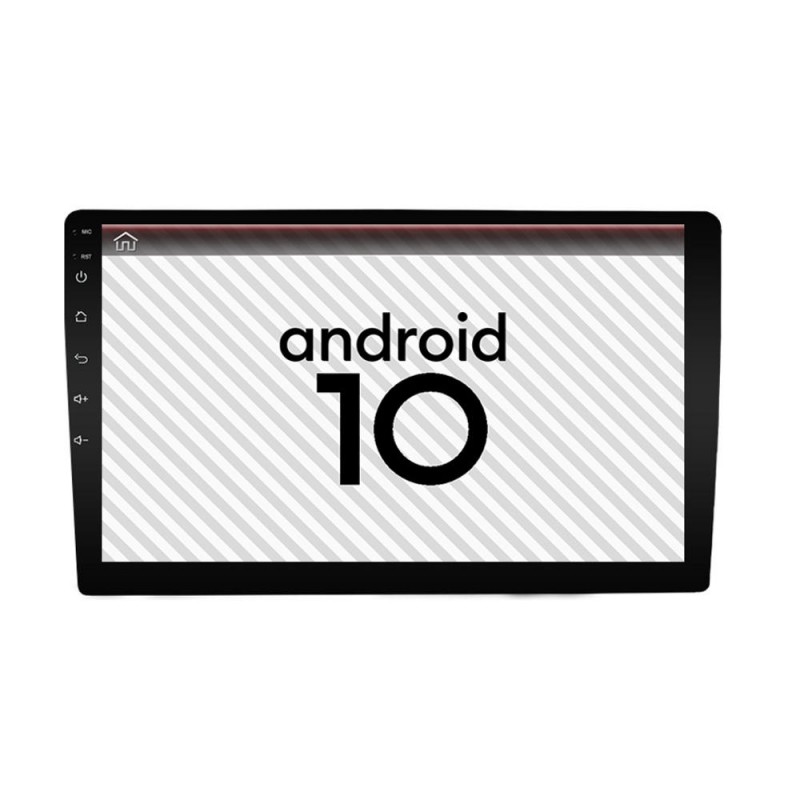

System: for Android 10.0
Operation mode: Capacitive screen multi-touch
RAM: 2GB DDR4
ROM: 32GB EMMC
RAM: 2GB DDR4
ROM: 32GB EMMC
Screen size: 7inch/9 inch/10.1inch, LVDS display interface
Installation Space: 2 DIN
Installation Space: 2 DIN
Screen resolution: Maximum support 1920*1200(you can install a 1920*1200 screen on it, the actual resolution is 1024*600)

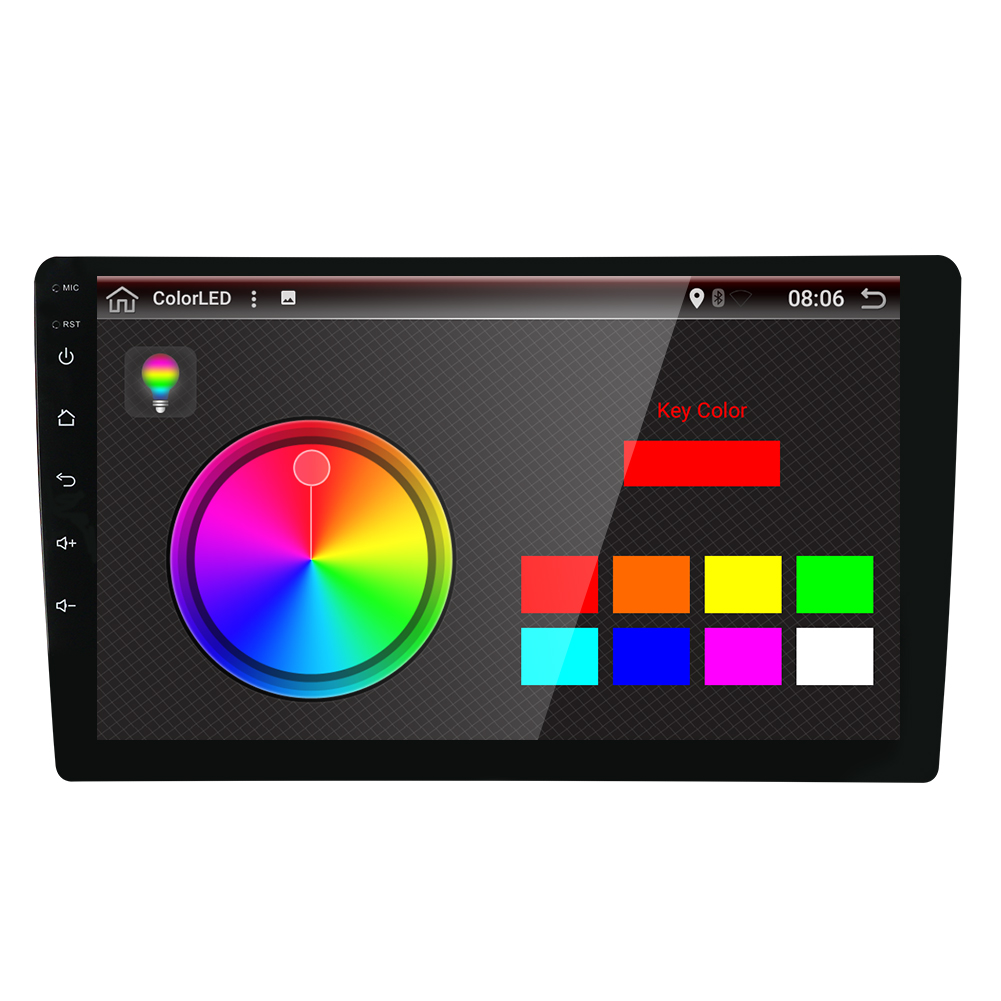

Theme: Free wallpaper replacement, support dynamic wallpaper

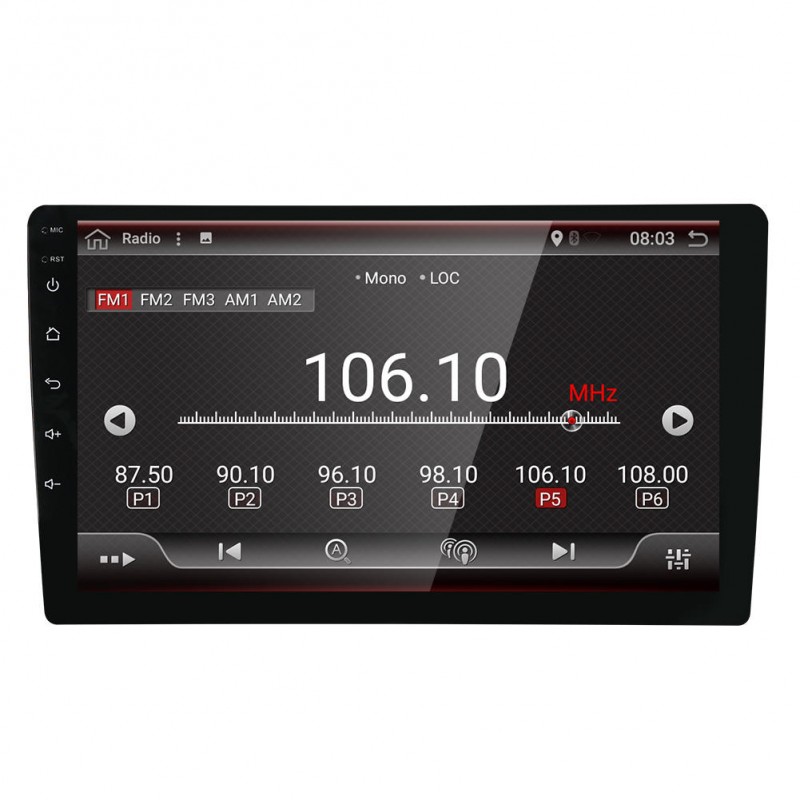

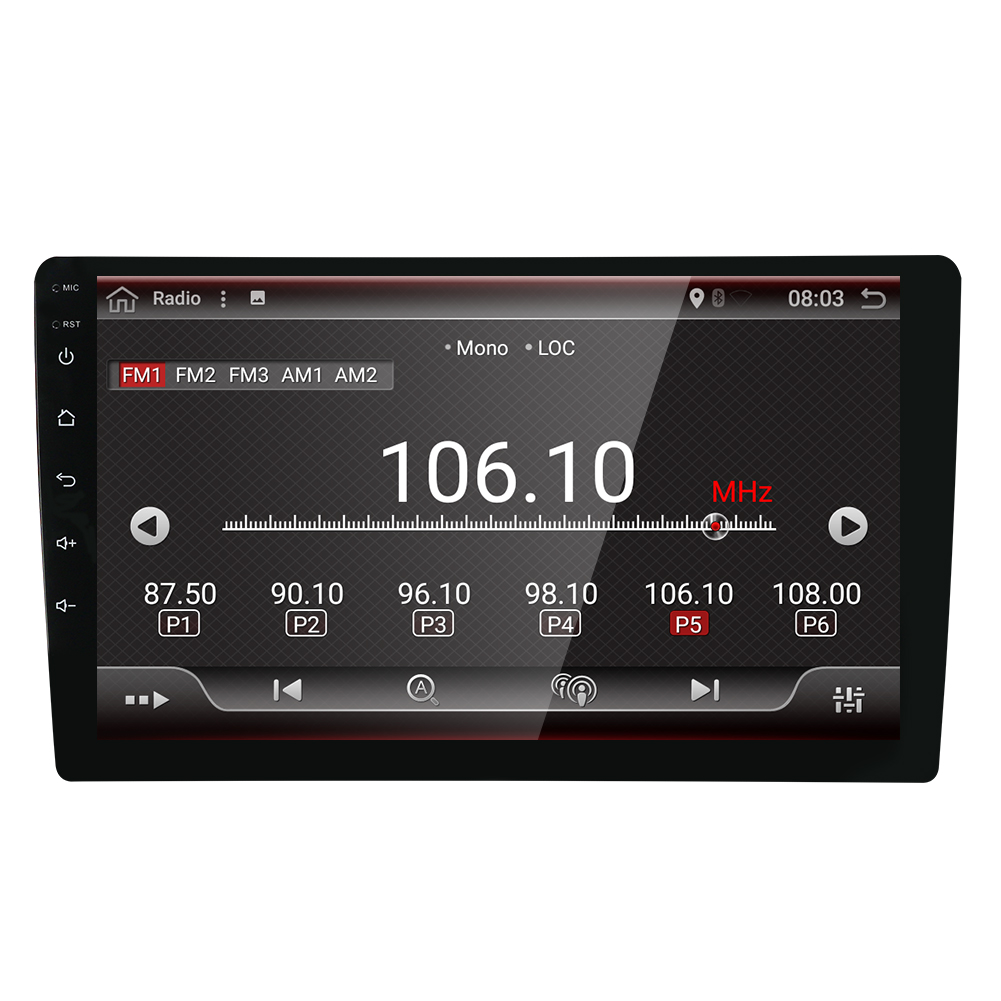

Radio: TDA7786, support FM, AM, RDS
Navigation: google map/waze/sygic, support map built-in/external, support navigation split screen function
AUX: A set of AV inputs
DTV: External DVB-T (Support,Not included), supporting square control and touch control mode to control DTV
USB/SD: Supports maximum 2T disk, 2-way back USB, 1-way front USB (optional)/1-way front SD (optional)
DAB: External (Support, Not included)
bluetooth Supports Phone Book: Call, Call Removal and Hand-Free Function, Call Recording, bluetooth Music Playing and External
Microphone Support
Microphone Support
DVR: CVBS and USB
Mobilephone interconnection: Support USB/WIFI connection
Mobilephone charging: 1A mobilephone charging current
Steering wheel control: Support original car steering wheel learning
Rear view: Reversing the car automatically switches the video, the screen starts quickly: ≤1.5S
Handbrake control: Can control whether the handbrake is functioning by setting the host
TFT image output: Supports mirror video of CVBS output TFT
Internet access: 3G/4G dongle or WIFI
User software download: Web application download, install, uninstall
Language :
Support: English, Japanese, Spanish, Italian, French, German, Portuguese, Russian, Arabic, Turkish, jewish, Vietnamese, Thai,
Chinese Simplified, Chinese Traditional, etc. (Default language English)
Support: English, Japanese, Spanish, Italian, French, German, Portuguese, Russian, Arabic, Turkish, jewish, Vietnamese, Thai,
Chinese Simplified, Chinese Traditional, etc. (Default language English)
Input method: Handwriting
Working environment temperature: -20 °C ~ +70 °C
Output power: 4x45W high power output TDA 7388
RCA Output: No Video Output; 3 Channel Audio Output: Front-Left, Front-Right, Overweight Bass Special Output
Video function:
Video format: DVD, MPEG1-4, DVIX, AVI, MKV, AVI, RMVB, FLAG and other video formats
Format resolution: Support 4K video
Audio function:
Music format: MP3, WMA, AAC, APE and other audio formats,automatic identification ID3 and album display
DAB+:
Support DAB+, but you need to buy a DAB+ box and DAB+ antenna to start the function.
DAB+:
Support DAB+, but you need to buy a DAB+ box and DAB+ antenna to start the function.
Picture function:
Picture format: JPEG/BMP
Thumbnail display: support
E-book function:
E-book format: TXT
Not Support:
Not Support:
External microphone, front USB charging port.
Note:
1.Note: This product does not contain fascia dash frame panel. Some special vehicles need a specific fascia to fit it.
2.Before buying, you need to measure the size and check if it matches the product size. If it does not match, you need to purchase
the fascia panel separately.
the fascia panel separately.

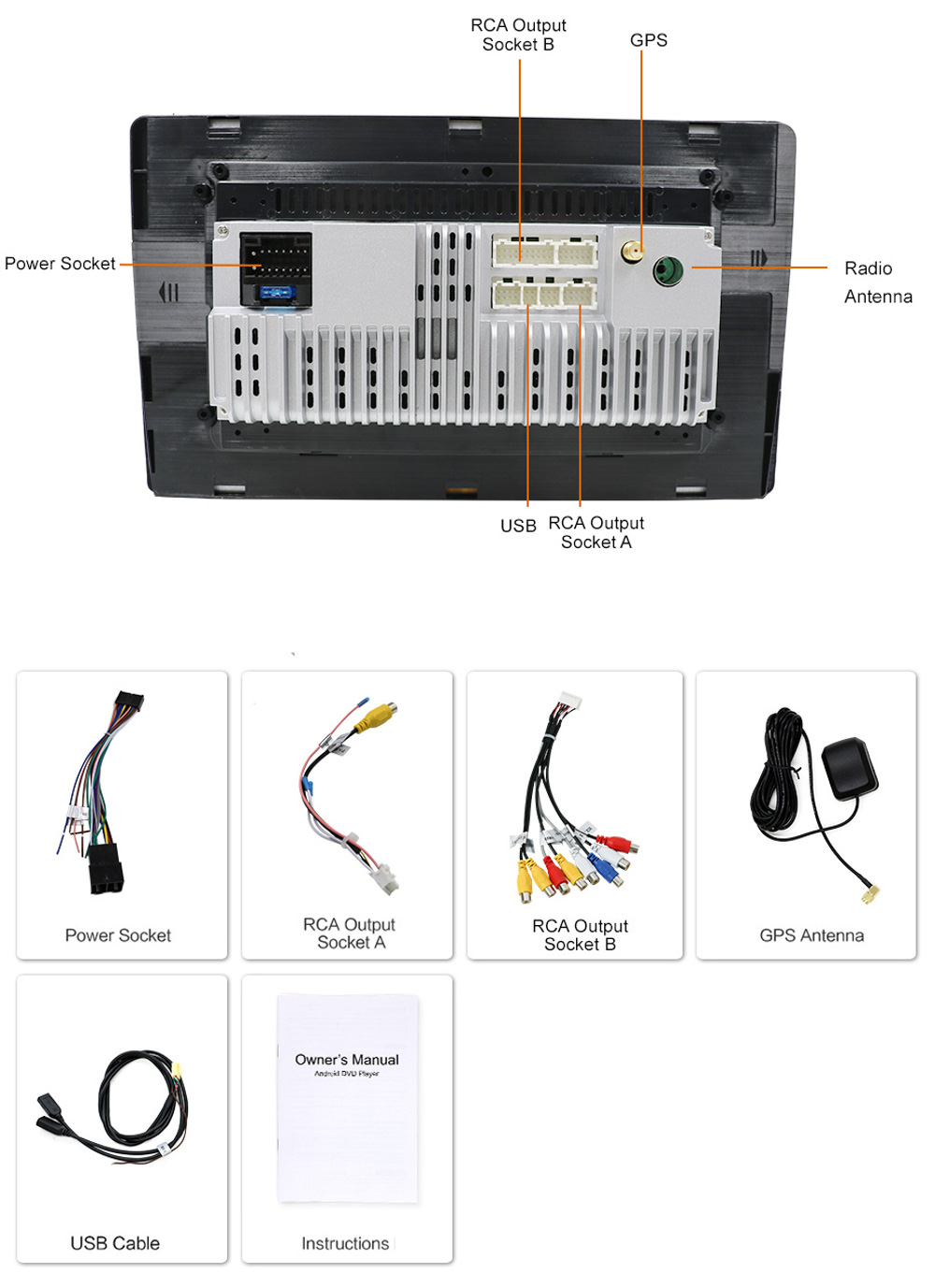

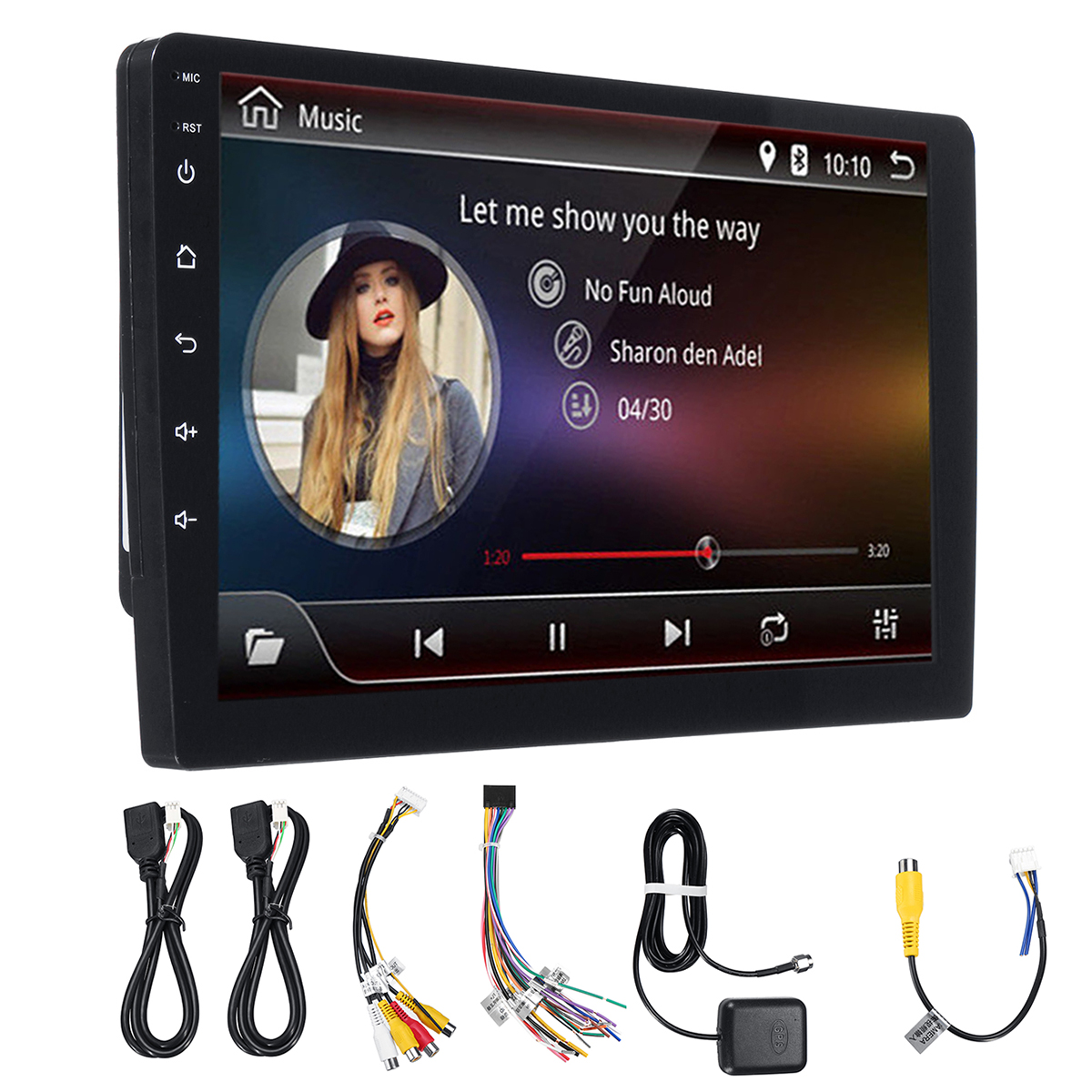

Package included:
1 X 7/9/10.1 Inch Car Player(optional)
1 X ISO Power Cable
1 X RCA Cable
1 X GPS Antenna
2 X USB Cable
1 X User Manual
